Fiber Inspection Scopes

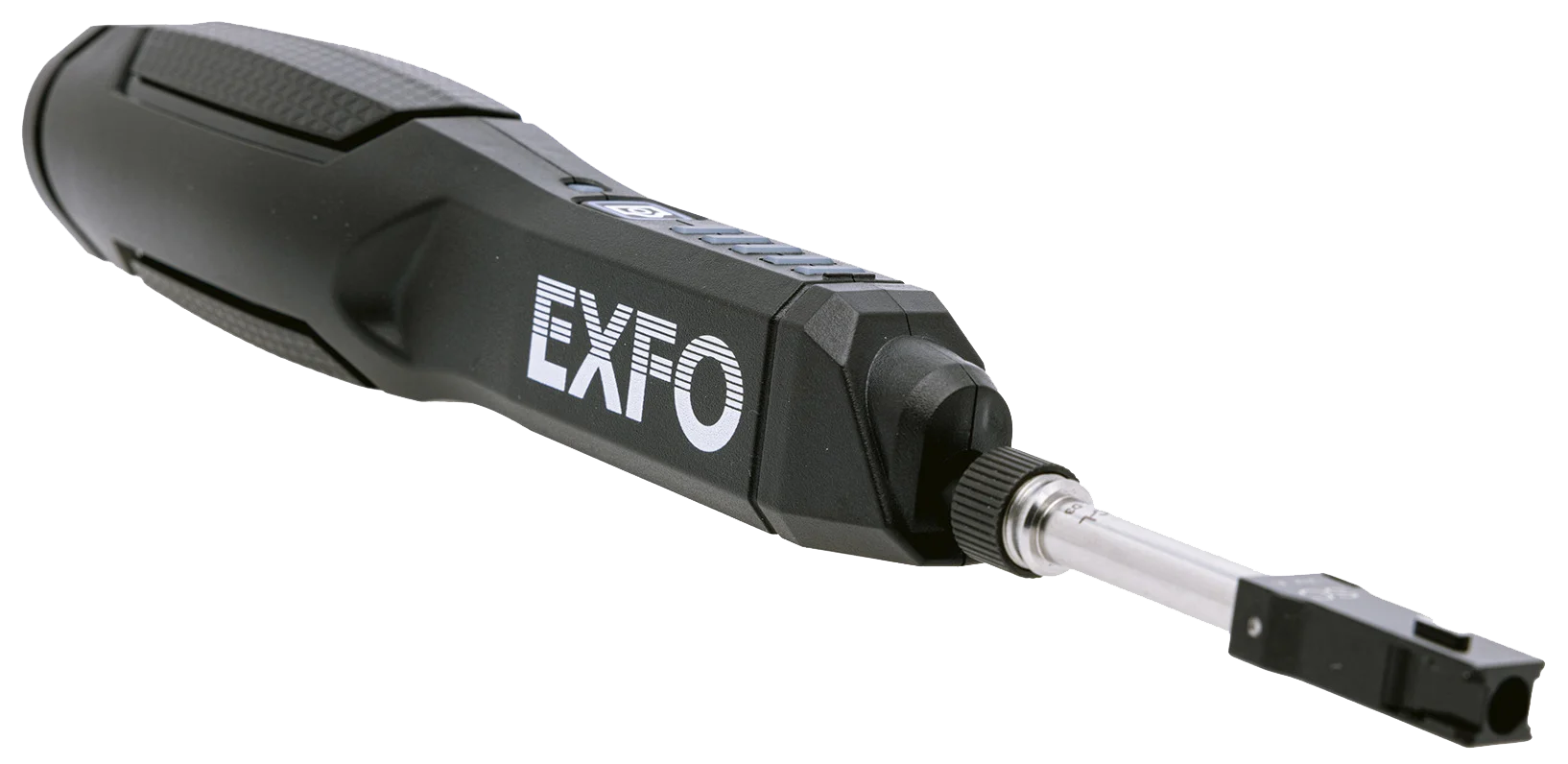

 The FIP-200 Inspection Scope
With one-button operation for power-on
and image capture, the FIP-200 works
anywhere—even in the dark or upside
down. Just affix it to a connector, press the
button, and get the result. No settings or
configuration needed.
Key Features
- Streamlined form factor and easy to use
- single-button operation for power-on and capture
- Five-bar rating (LED lights) to quickly assess cleanliness of the connector
- Visually clear pass/fail thresholds adapted to broadband context
- Long-reach head to easily access dense panels and cabinets
- Variety of tips available for most common FTTH fiber terminals
- Quick-connect design: quarter-turn click for switching between tips
- Short-reach head for cost-effective SC inspection
- Autonomous operation, can be used on its own without a cell phone
- Test all day without any interruption:
- Long-lasting battery
- Stores test results locally
- Cloud-hosted job management and reporting via EXFO ExchangeTM to ensure technician compliance
- Rugged and designed for the field
Applications
- Fiber-to-the-home (FTTH)
- Service activation
TROUBLE-FREE BROADBAND
ACTIVATION IN ONE CLICK
The FIP-200 builds on EXFO’s trusted experience in fibeinspection with leading features:
- Enhanced illumination technique based on two LEDs
- Blue LEDs (460-nm light) for better contrast
- Solid-state optical system. No moving parts for increased reliability• Dual‐core CPU, for faster acquisition, analysis and boot time
Specification Sheet: EXFO FIP-200-Spec-Sheet.pdf
You tube video - see it in action:
https://www.exfo.com/en/resources/videos/how-to-videos/fip-200-how-to-inspect-single-fiber-connectors

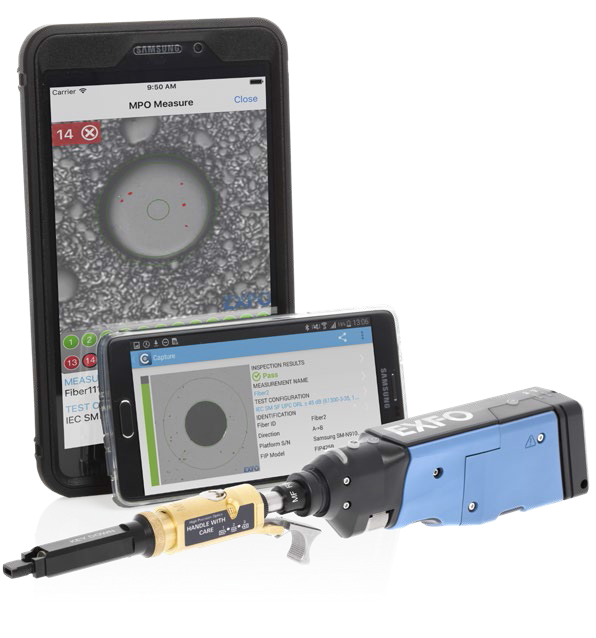

 The FIP-435B Inspection Scope
The FIP-435B scope is compatible with iOS and Android devices. Live video feed is streamed via WiFi without any wired connection required between the scope and the smart device.
The wireless scope is also compatible with EXFO’s FTB and MaxTester platforms (connected via USB cable or WiFi) as well as ConnectorMax2 software on a Windows-based PC.
Focus Protection
Prevents image capture if focus is not adjusted properly. This ensures that no performance-affecting defects or residues are ignored in the analysis, thus preventing the reporting of false-positive results.
Automated Focus Adjustment
Ensures that each connector image is captured at maximum quality for enhanced identification of defects.Focus protectionPrevents image capture if focus is not adjusted properly. This ensures that no performance-affecting defects or residues are ignored
in the analysis, thus preventing the reporting of false-positive results
Key Features
- 100% automated for single fiber connectors, one step inspection process
- Screenless operation enabled by pass/fail LED indicator
- On-board connector endface analysis (IEC or custom standards)
- Feature-rich ConnectorMax2 mobile application compatible with AndroidTM and iOSTM devices
- Full reporting capabilities on mobile devices and EXFO test platforms
- All-day battery life that will never let you down
- MF-ready scopes compatible with single-fiber and automated multifiber tips
- Manufacturing automation using REST API available upon request
Applications
- Central offices, exchanges and headends
- Data centers
- Wireless (e.g., 5G, FTTA, DAA, small cells)
- Fiber-to-the-home (FTTH)
Specification Sheet: EXFO FIP-400B-Series-Spec-Sheet.pdf
You tube video - see it in action:
https://www.exfo.com/en/resources/videos/how-to-videos/fip-435b-getting-started

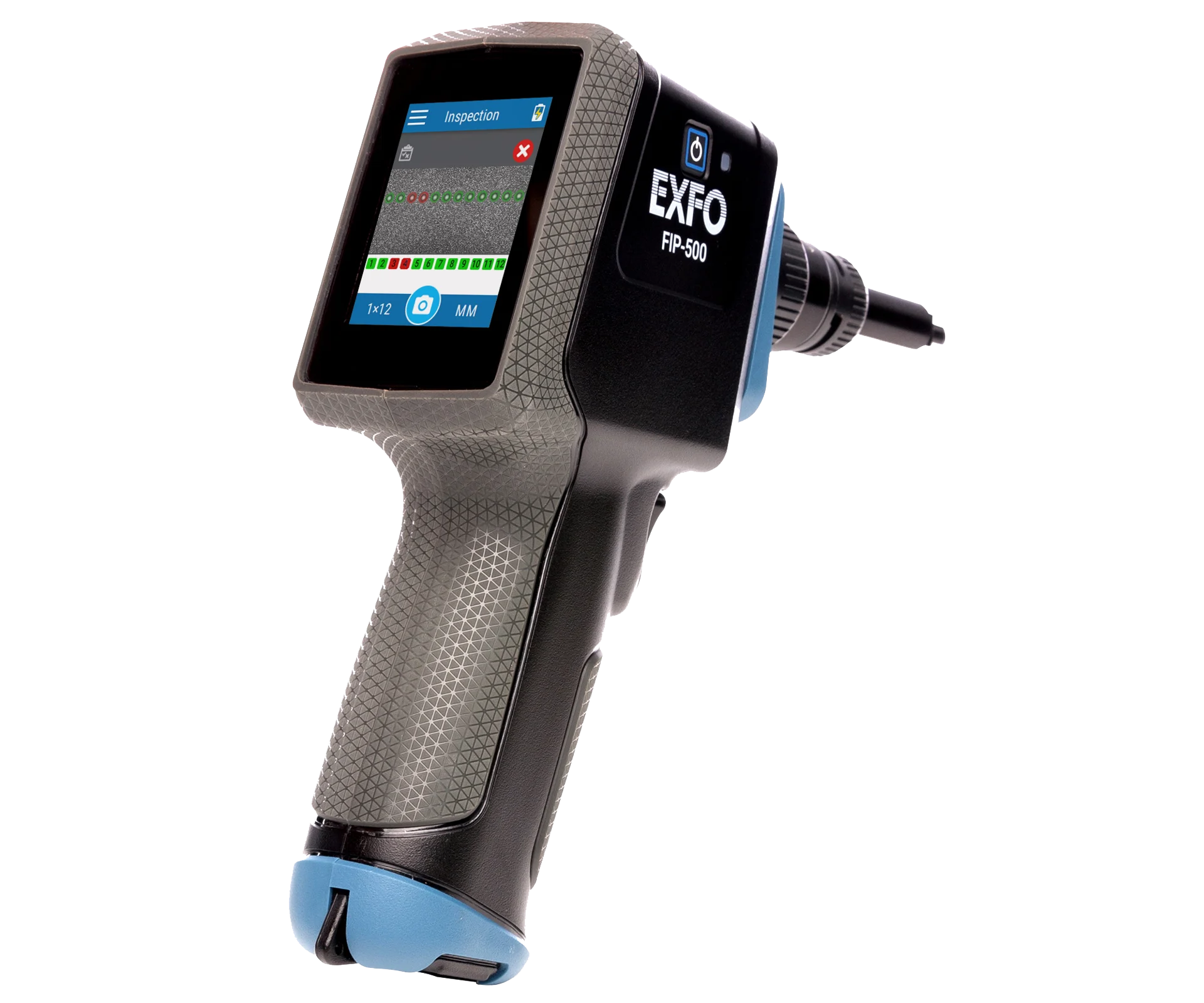

 The FIP-500 Inspection Scope
AI-POWERED AUTOMATED MULTI-FIBER,
SINGLE-FIBER AND DUPLEX
CONNECTOR INSPECTION
Industry’s first AI-driven endface analysis for simplex, duplex and multi-fiber connectors. Delivers reliable and repeatable results with a self-contained, fully automated tool for zero-button testing all day—no need to recharge batteries or offload results
Key Features
- Artificial intelligence-powered analysis for even more accuracy
- Best-in-class optical performance for accurate and repeatable results
- Zero-button inspection: 100% automated from inserting the probe to saving test results (auto-detect, auto-brightness, auto-focus, auto-center, auto-capture, auto-analys, auto-save and auto-reset)
- Fastest inspection in the industry: connect to MPO 12 fiber, analyze and save test results in less than 10 seconds, and the capability to select and inspect active fibers only for even faster results
- Automatic detection of MPO connector layout up to 4 rows of 8/12/16/24 fibers
- Automated threshold adjustment with SmarTips
- Wide array of adapter tips for single-fiber, multi-fiber and duplex connectors (e.g., SN-MT, MMC, LC, SC, ST, MPO, OptiTap®, OptiTip®)
- Smartphone-grade 2.4-inch color touchscreen
- Quick-connect design: quarter-turn click for switching between any tips
- On-board connector endface analysis (as per IEC standards)
Test all day without any interruption:
- Long-lasting battery
- Stores up test results locally - 2000 (MPO-12) or 10 000 (single‐fiber)
- Job management and reporting via EXFO Exchange platform
- Compatible with FIPT-400 tips
Specification Sheet: EXFO FIP-500-Spec-Sheet.pdf
You tube video - see it in action:
https://www.youtube.com/watch?v=01XvWeeeqBI
|
